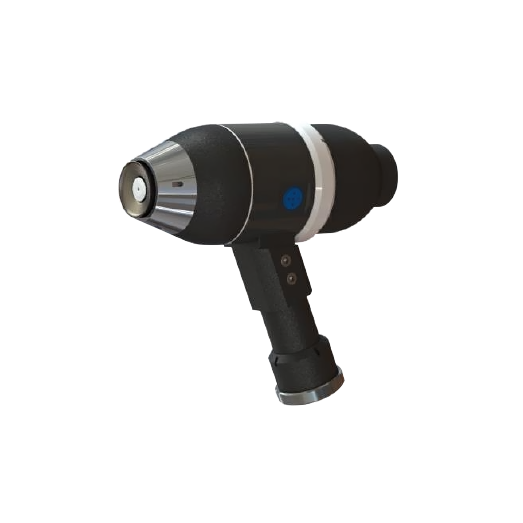

PRODUCT FEATURES
High Speed
Turbine rotation speed up to 70000r/min
Paint Saving
Transfer efficiency up to 80%
Practical
Easy maintenance and long lifetime
Full Range
Various bell cups and materials
TECHNICAL DATA
Compatible
Weight4.0 Kg
Air
Air Pressure0.7±0.1MPa
Bearing Air Pressure0.6~0.8Mpa
Bearing Air Consumpion50-100NL/min
Driving Air Consumption90-300NL/min
Forming 1 Air Consumption50-500NL/min
Micro Valve Pressure OnMin. 0.5MPa
Paint
PaintsSolvent-based/Water-based
Viscosity10s-40s (GB coating 4 atomizer)
Resistance0.1-1.0 MΩ
Flow20-700cc/min
Painting PressureMax.1.0MPa
Performance
High VoltageMax.100kV
Spray Amplitude120-350mm
Turbine Rotation Speed8000-70000r/min
Chain Speed1200mm/s
Shaping Scope150-500mm
Environment
Temperature0℃ - 40℃
Relative Humidity≤ 75%(+25℃)
Altitude≤ 2000 m
